The epoc® Critical Care/Blood Gas Analyser is a fast, accurate and cost-effective portable analyser.

The epoc was developed by the founder of the i-STAT Analyser and is the first wireless Point of Care testing solution to use Smart Card technology.

It is a cost-effective, state of the art blood gas analyser capable of providing 18 parameters directly to a hand held PDA (included). The epoc is able to wirelessly interface with your in-practice computer and Bluetooth printer.

Features

  • Accurate blood gas, electrolyte and critical care biochemistry results in 3 minutes
  • Veterinary species specific software
  • Room temperature card storage
  • 92µl sample, fresh whole blood (arterial, venous or capillary)
  • Completely portable with rechargeable battery and Bluetooth printer
  • Ready to use anytime, anywhere - in-practice, theatre, patient side or equine yard
  • Easy to use with touch screen technology
  • Wi-Fi and Bluetooth enabled - easy transfer of data
  • EDM Lite software and large data storage
  • Automatic self calibration and quality checks
  • Low cost analyser and cartridges
  • Single-use, self-calibrated test with barcoded SmartCard™ technology for improved safety and total quality assurance
  • Ability to input all patient data, species, temperature and ventilator settings - analyser stores 2000 patient results

NEW epoc NXS Host

  • Automated software updated through Wi-Fi
  • Simple, intuitive user interface, similar to that of a smartphone
  • Touch screen navigation including 'Show me how' videos
  • Colour coded results for easy interpretation

Test Card Contains all Parameters

The epoc Blood Gas Analyser is affordable, easy to use and requires no refrigeration of consumables. With its sleek design and touchscreen menu, the epoc Blood Gas Analyser is a modern and accurate device suitable for any UK veterinary practice.

Measured Analytes
  • pH
  • pCO2
  • pO2
  • Na+
  • K+
  • Cl-
  • Ca++
  • Glu
  • Lac
  • HCT
  • BUN
  • Creatinine
  • TCO2
Calculated Values
  • HCO3
  • BE (ecf)
  • BE (b)
  • sO2
  • Hgb
  • AGapK

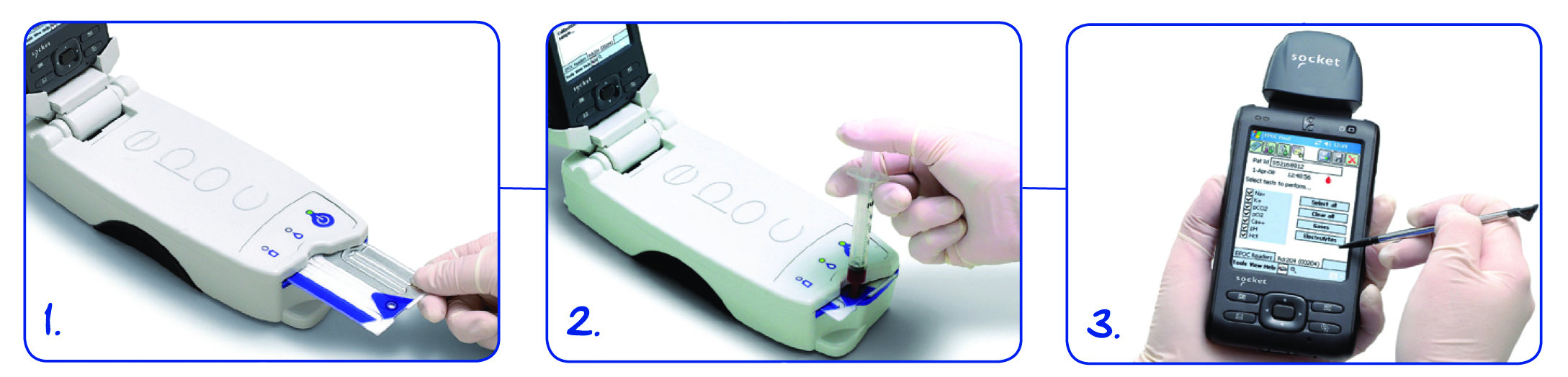

Three Simple Steps to Using the epoc Blood Gas Analyser

Operating the epoc Blood Analyser is simple. A disposable epoc Test Card is inserted into the reader and an automatic calibration cycle is performed. A small sample of fresh whole blood (92μl) is then injected into the sample entry port on the test card. The reader then analyses the blood and approximately 35 seconds after sample injection, results are displayed on the epoc Host.

Blood Analyser Components

The epoc Blood Gas Analyser has four components: the reader, the host, the test cards and the printer. The epoc Blood Gas Analyser is able to provide accurate results for up to 18 parameters within 3 minutes.

epoc Reader

  • Battery powered portable device
  • Internal barcode scanner
  • Card slot for accepting test card
  • Status indicators to inform user of test progress
  • Measures electrical signals from test card sensors
  • Transmits test results wirelessly via Bluetooth to the epoc Host

epoc Host

  • Mobile computer with epoc Host software application installed
  • Communicates wirelessly via Bluetooth with epoc Reader
  • Calculates analytical values from sensor data sent by epoc Reader
  • Displays test results
  • Communicates with practice computer via Wi-Fi

epoc Test Card

  • Single-use device with port for blood sample introduction
  • Contains array of sensors on a Sensor Module
  • Contains calibration fluid within sealed reservoir
  • Generates electrical signals proportional to analyte concentrations in sample
  • Uses Barcode to identify Card Type, “Use By” Date, Serial and Lot Number

epoc Printer

  • Thermal printer
  • Maintenance free
  • Highly reliable
  • Able to print results immediately

Accessories

You can now combine your epoc Analyser with new epoc accessories to ensure your veterinary practice has the latest technology. The new epoc accessories include:
  • epoc Bag - contains phase change material to help keep the epoc at a constant temperature
  • epoc Car Charger - for charging the epoc Analyser and other electrical appliances e.g. mobile phones
  • epoc Bluetooth Thermal Printer - can print results immediately and wirelessly
  • epoc Printer Wall Mount - for attaching the epoc Printer to the wall to save space

Ordering Information

Product Code
Product Description
WD1205Depoc BGEM 4 Veterinary Test Card (1)
WD1214epoc Reader
WD1215epoc Host
WD1206epoc Analyser System (Host & Reader)
WD1207epoc Analyser System (Host & Reader) With Printer
WD1215Eepoc Host2 (MC55X) Vet - China
WD1215Hepoc Analyser System (Chinese)
WD1215Depoc Host (Japanese)
WD1215Gepoc Analyser System (Japanese)
WD1214Aepoc Reader - Refurbished
WD1215Aepoc Host2 Veterinary Refurbished
WD1215Lepoc Analyser System - Refurbished (European)
WD1215Kepoc Host - Refurbished (Chinese)
WD1215Nepoc Analyser System - Refurbished (Chinese)
WD1215Jepoc Host - Refurbished (Japanese)
WD1215Mepoc Analyser System - Refurbished (Japanese)
WD1208epoc Printer
WD1218epoc Label Printer Roll (1)
WD1227epoc Printer - Rechargeable AA 1.2V NiMH Batteries (4)
WD1211Eurotrol BGEM Level 1 Control for epoc (2.5ml)
WD1213Eurotrol BGEM Level 3 Control for epoc (2.5ml)
WD1221Carefill Capillary Tubes (5x10)
WD1219epoc Transport Case
WD1216epoc In-Car Charger 12V 150W
WD1217epoc Printer Wall Mounting Plate
WD1220epoc Host Battery 3600MAH MC55A0-HC Motorola
WD1220Aepoc Host Battery Pack Extended
WD1224epoc Host Cradle with Tethered Stylus (SOC)
WD1224Aepoc Host2 Cradle
WD1225epoc Reader Battery
WD1226epoc Reader Battery Door
WD1229Aepoc Reader Power Supply Protek
WD1210Printer Paper


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyvetdiagnostics.com
