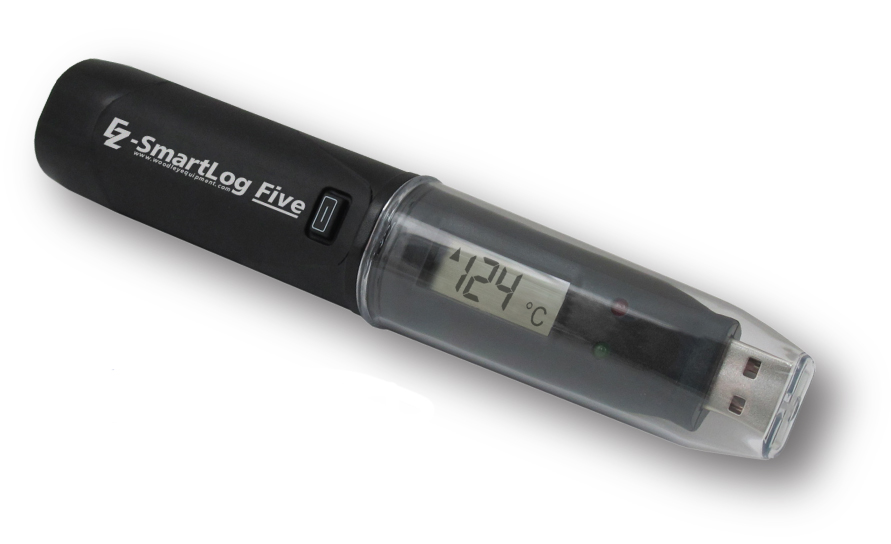

The EZ-SmartLog Five Thermocouple temperature data logger with USB interface


ez_smart_log_five_datalogger.pdf


The EZ-SmartLog Five Thermocouple temperature data logger with USB interface and high contrast LCD is a stand alone unit that measures and stores 32,510 temperature readings from either a J, K or T type thermocouple. A thermocouple is attached via the thermocouple socket at the base of the unit. The data logger is simple to operate and set up with the thermocouple type, logging rate, start time, logging mode and to download the stored data.This can be done by plugging the data logger into a PC's USB port and running the supplied software.The data can be then printed, graphed and exported to other applications. The high contrast LCD can show different temperature variables. The data logger is supplied with a long life lithium battery, which typically allows logging for up to 6 months.

To install software, please copy and paste the below URL into a separate browser tab:
http://www.woodleyequipment.com/document/EZ-SmartLog.zip


The EZ-SmartLog Five Thermocouple USB Temperature Datalogger with LCD is available for rental, hire or purchase


Features

  • -200°C to +1350°C (-328°F to +2462°F) K type measurement range
  • -200°C to +1190°C (-328°F to +2174°F) J type measurement range
  • -200°C to +390°C (-328°F to +734°F) T type measurement range
  • High contrast LCD with a 4 digit temperature display
  • USB interface for set-up and data download
  • User-programmable alarm thresholds
  • Status indication via red, green and orange LEDs
  • Immediate, delayed and push to start logging
  • Supplied with replaceable internal lithium battery typically allows logging for 6 months
  • Supplied with Windows control software which is easy to install and allows the following parameters to be configured:
    • Logger name
    • °C or °F
    • Logging rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
    • High and low alarm levels
    • Start date and time
  • Compatible with Windows 7,8,10
  • Range of logging modes available
  • Environmental protection to IP67 when protective cap fitted



Specification

Logging Rate
1sec to 12 hour
Alarm LEDs
9 alarm combinations
Internal Resolution
0.5°C (1°F)
Data Logger Accuracy
± 1°C (± 2°F)
Data Logger Operating Temperature
-10°C to +40°C (+14°F to +104°F)
Battery
3.6V 1/2 AA replaceable lithium
Battery life
6 months
Dimensions
118h x 26.5w x 26.5dmm


Temperature calibration can be provided to ISO 9002 standards upon request at time of order.

Prices

All our Equipment for your Clinical Trial is available on a rental, purchase or equipment management basis - please use the links at the top of the page to request a quotation.

This EZ-SmartLog™ Five thermocouple temperature USB datalogger with LCD display can be ordered with any other clinical trial, medical or laboratory equipment to create the most effective equipment management solution for your study.
