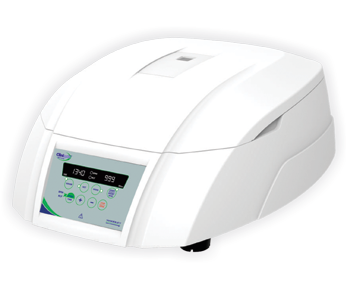

The Clinispin™ Vet Combi is a high speed centrifuge equipped with a combination rotor that provides efficient separation of blood and urine samples with accurate haematocrit determination.
Features
- 3 pre-defined pre-sets for easy and rapid operation at the press of a button:
- Serum/Plasma (12,000 RPM for 2 minutes) - 8 x 2ml
- HCT/PCV (12,000 RPM for 5 minutes)
- Urine (1,000 RPM for 1 minute)
- Pre-sets can be varied for each centrifugation if required
- Rotor allows for quick and easy sample loading
- Maintenance free drive
- Digital display
- Easy to use
- Silent operation
Specifications
| Motor Type | Brushless DC Motor |
| Rotor Capacity | 8 x 2ml tubes / 8 x 70mm capillary tubes |
| Speed Setting | Variable 500-13,400 RPM 17,040 xg (Max. RCF) |
| Speed Accuracy | ±100 RPM |
| Speed Steps | 10 RPM |
| Run Time | 1-999 minutes and infinite mode |
| Acceleration Time | 70 seconds (±5 sec) |
| Deceleration Time | 110 seconds (±5 sec) |
| Programs | Serum/Plasma (12,000 RPM for 2 minutes) HCT/PCV (12,000 RPM for 5 minutes) Urine (1,000 RPM for 1 minute) |
| Noise Level | ≤60 dB |
| Permissible Temperature | +45°C |
| Permissible Relative Humidity | ≤80% |
| Dimensions | 381 (W) x 480 (D) x 185 (H) mm |
| Centrifuge Weight | 12kg (without rotor) |
| Rotor Weight | 1.1kg (with load) |
| Altitude | Use up to an altitude of 2000m above MSL (mean sea level) |
| Pollution Degree | 2 |
| Environment | For indoor use only |
| Power Adapter Details | Input: 100-240 VAC, 50/60 Hz Output: 26V DC 8A |
| Power Consumption | 143W |
Ordering Information
| Product Code | Product Description |
| WD4500 | Clinispin Vet Combi |
| WD0304B | InSight HCT Reader |
| WD0304A | HCT Reader Card |
If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyequipment.com
