Vcheck C10 Immunoassay and Chemistry Analyser


vcheck_c10_flyer.pdf


Vcheck C10 is a versatile, high-throughput immunoassay and chemistry analyser that features a broad range of test parameters, and is scalable for simultaneous testing of up to 4 samples.

Features

  • Broad range of test parameters, including Immunoassay
  • Results in 10 minutes with only 70µl of sample
  • Easy 3 step testing process
  • Scalable for simultaneous testing of up to 4 samples
  • User-friendly interface
  • 16 reaction wells on cartridge, each pre-coated with specific reagents required to measure each parameter
  • Test data and required information stored in a 2D barcode on the cartridge, eliminating the need for extra procedures
  • Cartridge handle eliminates cartridge contamination risk, ensuring safer and more reliable results

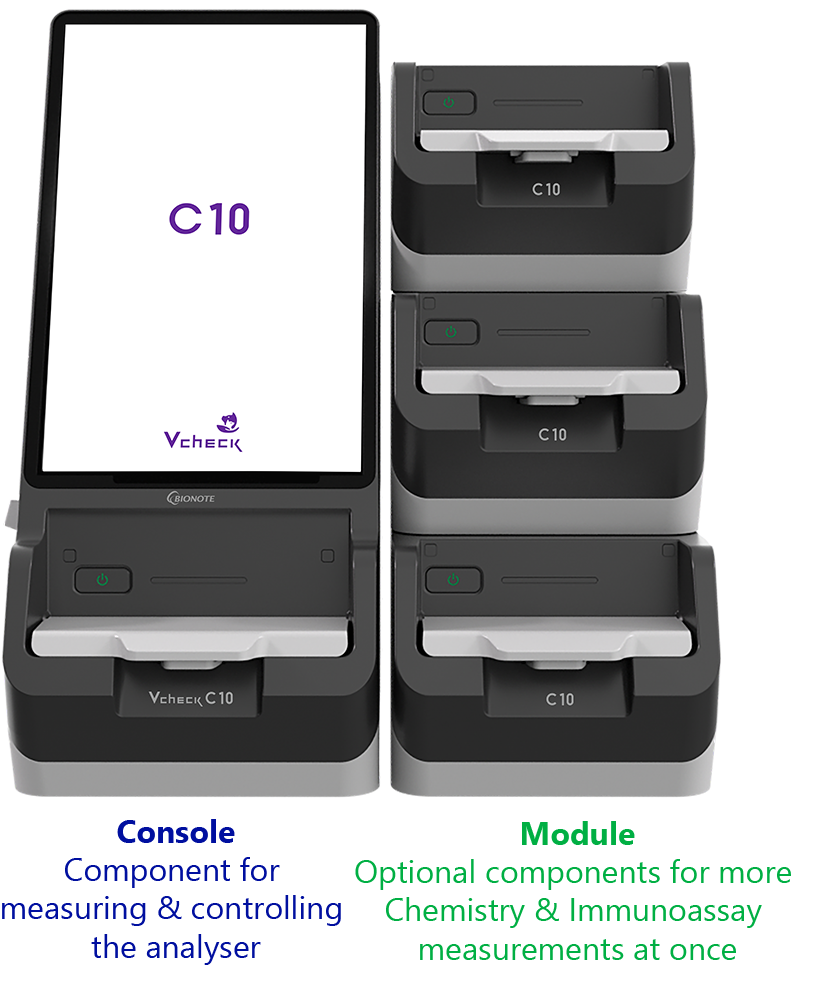

Options:
  • 1 Console: Maximum 1 sample at once
  • 1 Console + 1 Module: Maximum 2 samples at once
  • 1 Console + 2 Modules: Maximum 3 samples at once
  • 1 Console + 3 Modules: Maximum 4 samples at once

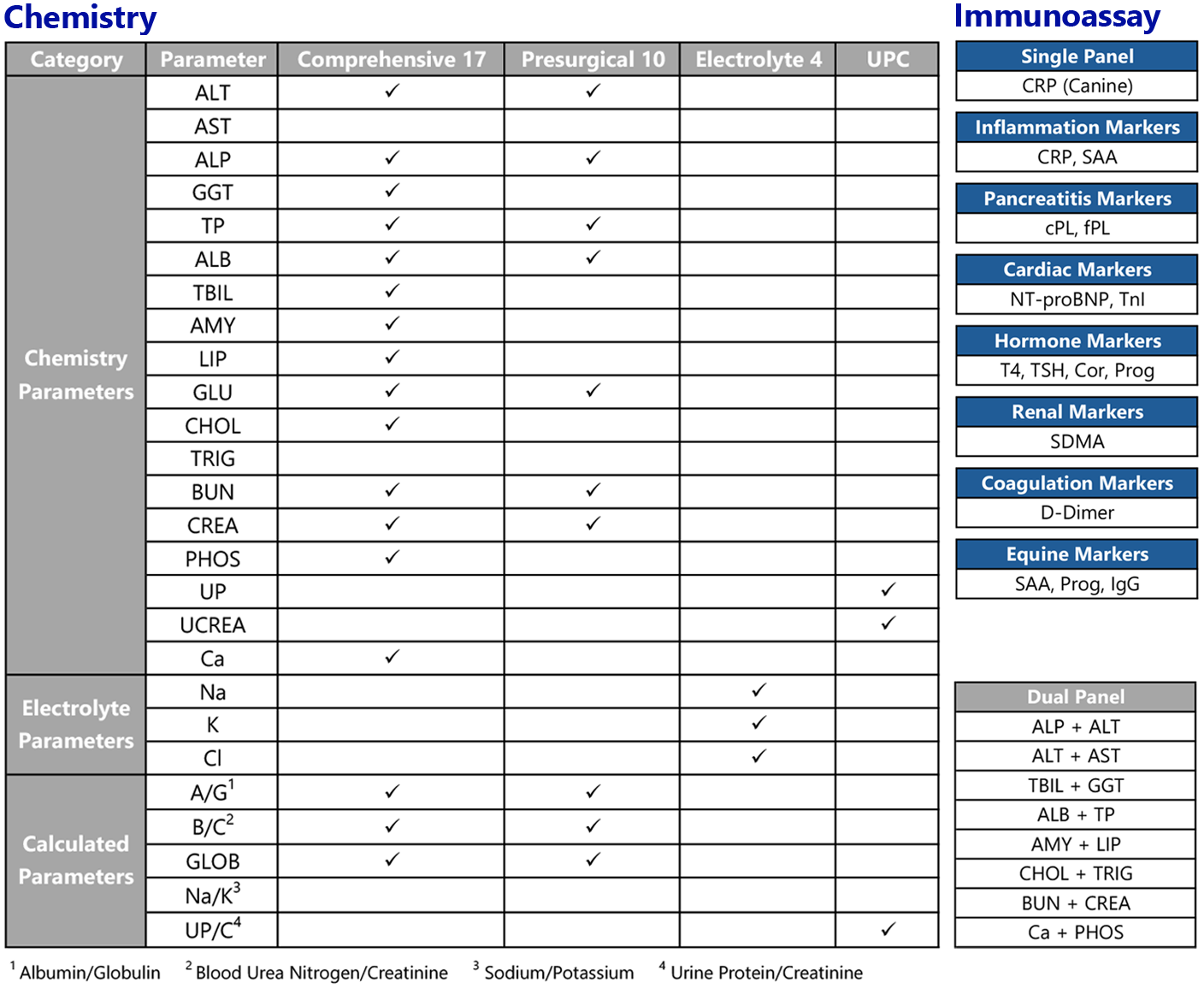

Test Parameters

Specifications

ChannelsUp to 4 channels (1 Console + 3 Modules)
SamplesUp to 4 samples at once (1 per channel)
Input VoltageConsole - AC 100~240V, 50/60 Hz
Module - 12 Vdc, 1.5A (can't use without a console)
Display10.1 inch touchscreen
Display ControlGraphic User Interface (GUI)
Power Consumption84W
Storage Capacity30,000 tests
CommunicationUSB, ethernet, Wi-Fi (2.4GHz, 5GHz)
LIS/HISHL7 profile support
Operating Conditions+5°C to +40°C, 0% to 85% RH
Storage Conditions-20°C to +50°C, 0% to 93% RH
DimensionsConsole - 160 x 329 x 352 mm
Module - 140 x 282 x 108 mm
WeightConsole - 3.3kg
Module - 1.1kg


If you would like more information please contact Woodley Equipment on +44 (0) 1204 669033 or email sales@woodleyequipment.com
